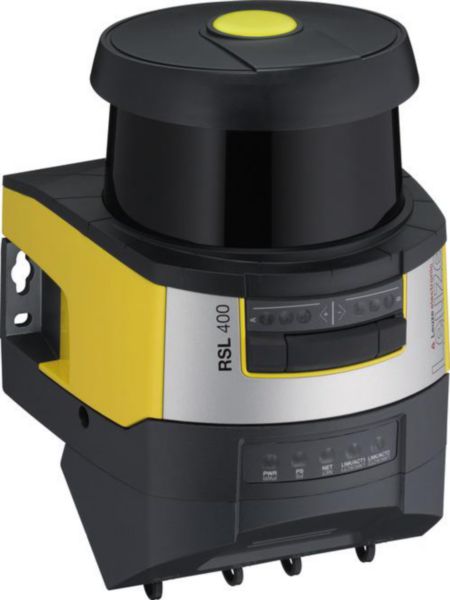

RSL450P-L/CU400P-4M12

Type: 3; IEC/EN 61496; SIL: 2; IEC 61508; Performance Level (PL): d; EN ISO 13849-1; Scanning angle: 270 °; Number of field pairs; reversible: Up to 100; Number of protective functions: 2 Piece(s); Operating range: 0-6.25 m; Range; warning field: 0-20 m; Supply voltage: 24 V; DC; -30-20 %; Type of interface: PROFINET; Connection 1: Connector; M12; 5 -pin; Connection 2: Connector; M12; 4 -pin; Dimension: 140.2x170x142mm
