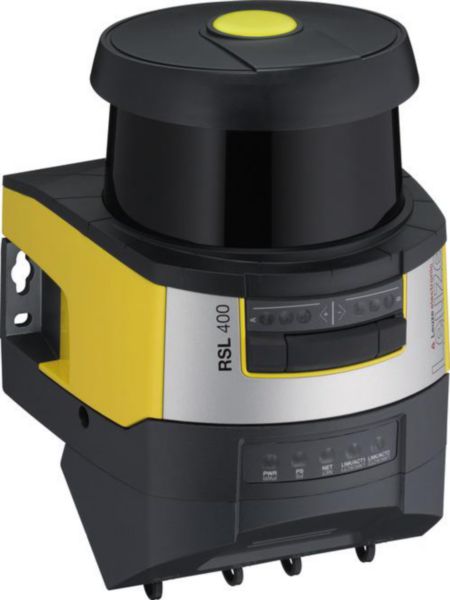

RSL420P-XL/CU400P-AIDA

Type: 3; IEC/EN 61496; SIL: 2; IEC 61508; Performance Level (PL): d; EN ISO 13849-1; Scanning angle: 270 °; Number of field pairs; reversible: 10; Number of protective functions: 1 Piece(s); Operating range: 0-8.25 m; Range; warning field: 0-20 m; Supply voltage: 24 V; DC; -30-20 %; Type of interface: PROFINET; Connection 1: PROFINET push-pull 24V; 5 -pin; Connection 2: PROFINET RJ45 push-pull IEC 61076-3-117 var. 14; Dimension: 140.2x200x142mm
