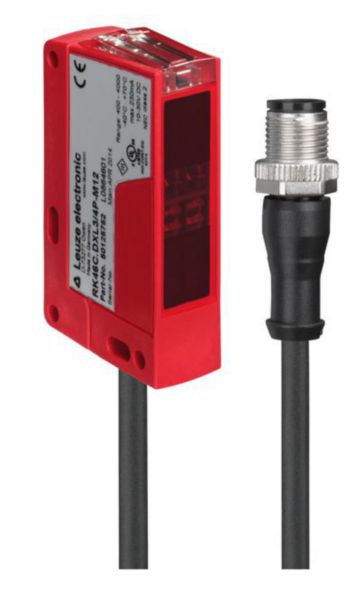

RK46C.DL3/4P-200-M12

Application: Detection of irregular objects on conveyor belt; Detection of polybags on conveyor belt; Special design: Light-band; Operating range limit: 0.55-1.5 m; Light source: LED; Red; Minimum object size: 5mmmm; Supply voltage: 10-30VDC; Digital switching outputs: 2 Piece(s); Switching output 1: Transistor; PNP; Light switching; Switching output 2: Transistor; PNP; Dark switching; Switching frequency: 250 Hz; Connection: Cable with connector; 200mm; M12; Plastic; 4 -wire; 4 -pin; Design; housing: Cubic; Dimensions: 20.5x76.3x44mm; Housing material: Plastic; Operational controls: Teach button; Ambient temperature; operation: -40-60°C; Degree of protection: IP69K; IP67
