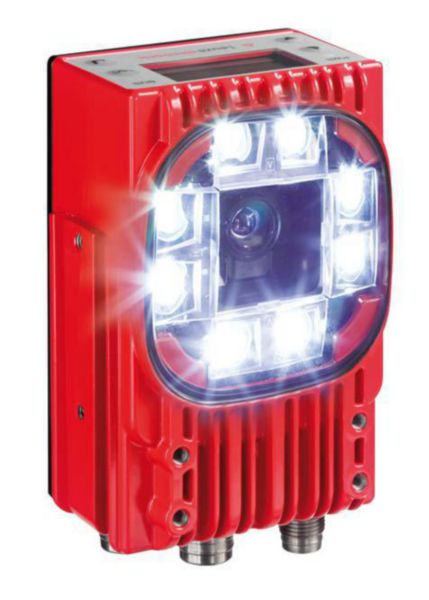

LSIS 462i M45-W1-01

Software functions: BLOB analysis (presence control); Dimension monitoring; Reading of 1D codes; Reading of 2D codes; Position determination; BLOB analysis (completeness monitoring); Measuring tool; Focus adjustment; Light source: LED; White; Camera resolution; horizontal: 752 px; Camera resolution; vertical: 480 px; Focal length: 16mm; Supply voltage: 18-30VDC; Interface: Ethernet; RS 232; Connection: Connector; M12; Dimensions: 75x55x113mm; Configuration/parametering: Via web browser; Ambient temperature; operation: 0-45 °C; Degree of protection: IP65; IP67
