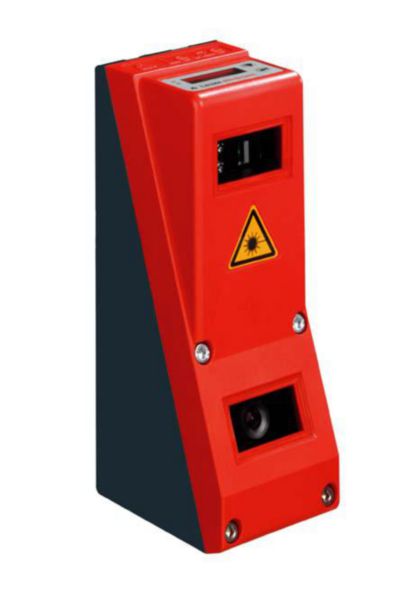

LES 36/VC6

Application: 3D object detection; Object measurement; Light source: Laser; X-axis measurement range: 150-600mm; Measurement range z-axis: 200-800mm; Measurement time: 10ms; Supply voltage: 18-30VDC; Activation inputs: 1 Piece(s); Digital switching outputs: 6 Piece(s); Analog outputs: Current; Voltage; Interface: Ethernet; Connections: 3 Piece(s); Dimensions: 56x160x74mm; Optics cover: Glass
