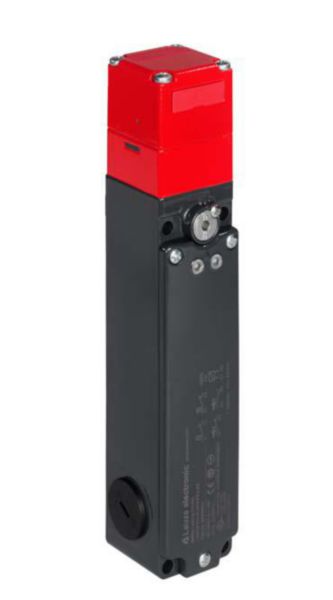

L200-M1C3-MLM24-L2G

Series: L200; Functions: Locking device with guard interlocking according to ISO 14119; Electro-magnetic guard interlocking (magnet-force); Illuminated displays for magnet activation; Integration in control circuits up to category 4 in accordance with EN ISO 13849-1; Connection: Terminal; 10 -pin; Dimension: 45x46x194.7mm; Housing material: Metal; Locking force; max.: 2.500 N; Degree of protection: IP67; Certifications: IMQ; c UL US
