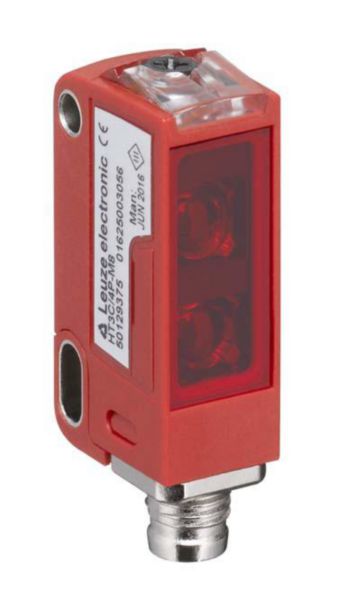

HT3C.XL/G-M8.3

Application: Detection of objects with openings; Detection of highly transparent bottles; Detection of transparent films; Special design: Extra long light spot (XL); Operating range limit; white 90%: 0.005-0.1 m; Light source: LED; Red; Supply voltage: 10-30VDC; Digital switching outputs: 1 Piece(s); Switching output 1: Transistor; Push-pull; Dark switching (PNP)/light switching (NPN); Switching frequency: 1.000 Hz; Connection: Connector; M8; Metal; 3 -pin; Design; housing: Cubic; Dimensions: 11.4x34.2x18.3mm; Housing material: Plastic; Operational controls: Multiturn potentiometer; Ambient temperature; operation: -40-60°C; Degree of protection: IP67; IP69K
