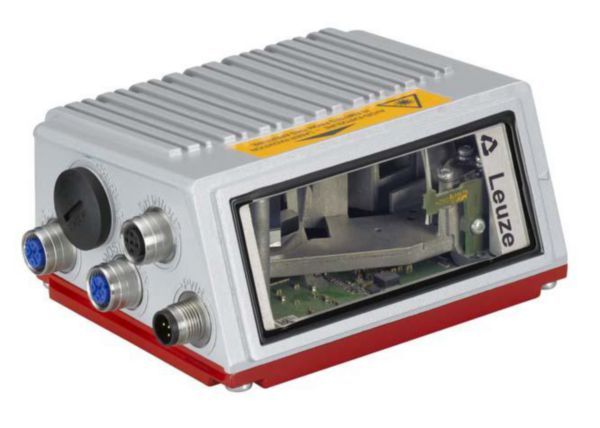

BCL 608i SM 102

Functions: AutoConfig; Alignment mode; AutoControl; AutoReflAct; Code fragment technology; LED indicator; Reference code comparison; Scanning rate; typical: 1.000 scans/s; Reading distance: 400-900mm; Reading method: Line scanner; Light beam exit: Front; Supply voltage: 10-30VDC; Selectable inputs/outputs: 4 Piece(s); Interface: Ethernet; USB; Connection: USB; Dimensions: 123.5x63x104.2mm; Display: LED; Monochromatic graphical display; 128x64 pixel; with background lighting; Operational controls: Button(s); Via service interface; Ambient temperature; operation: 0-40°C; Certifications: c UL US
