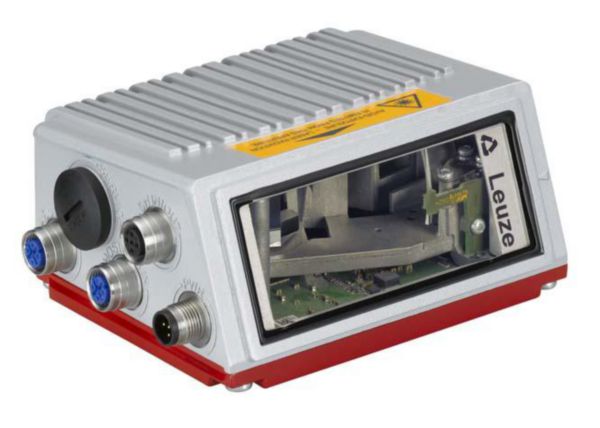

BCL 600i SM 102

Functions: LED indicator; Alignment mode; AutoConfig; AutoControl; AutoReflAct; Code fragment technology; Reference code comparison; Scanning rate; typical: 1.000 scans/s; Reading distance: 400-900mm; Reading method: Line scanner; Light beam exit: Front; Supply voltage: 10-30VDC; Selectable inputs/outputs: 4 Piece(s); Interface: RS 232; RS 422; RS 485; USB; Connection: USB; Dimensions: 123.5x63x106.5mm; Display: Monochromatic graphical display; 128x64 pixel; with background lighting; LED; Operational controls: Button(s); Ambient temperature; operation: 0-40°C; Certifications: c UL US
