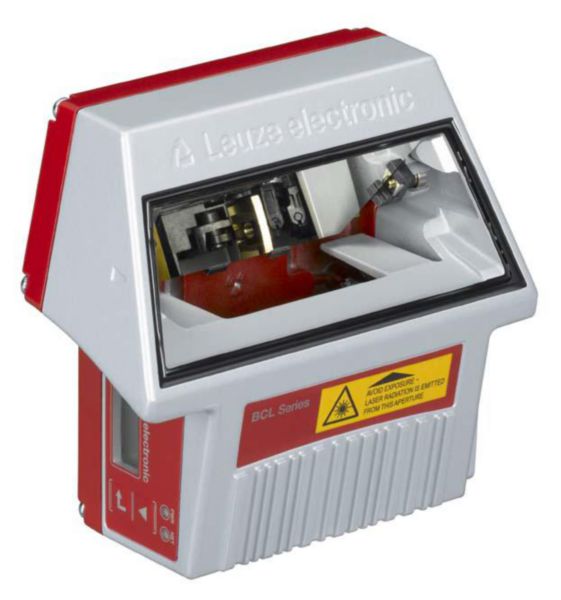

BCL 304i OF 100

Functions: AutoControl; Alignment mode; AutoConfig; AutoReflAct; Code fragment technology; LED indicator; Reference code comparison; Scanning rate; typical: 1.000 scans/s; Reading distance: 80-455mm; Reading method: Oscillating-mirror scanner; Light beam exit: Zero position at side at angle less than 90°; Supply voltage: 18-30VDC; Selectable inputs/outputs: 2 Piece(s); Interface: PROFIBUS DP; USB; Connection: Plug connector; Dimensions: 125x58x110mm; Display: LED; Ambient temperature; operation: 0-40°C; Certifications: c UL US
