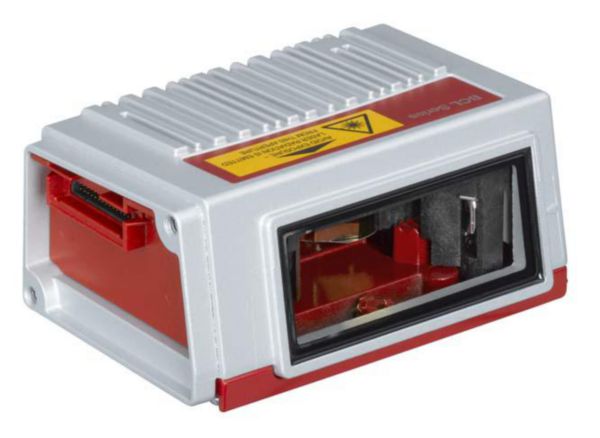

BCL 301i R1 M 102

Functions: AutoConfig; Alignment mode; AutoControl; AutoReflAct; Code fragment technology; LED indicator; Reference code comparison; Scanning rate; typical: 1.000 scans/s; Reading distance: 60-320mm; Reading method: Raster scanner; Light beam exit: Front; Supply voltage: 18-30VDC; Selectable inputs/outputs: 2 Piece(s); Interface: MultiNet Plus; RS 485; USB; Connection: Plug connector; Dimensions: 95x44x68mm; Display: LED; Ambient temperature; operation: 0-40°C; Certifications: c UL US
